I/V Graph Of A Semiconductor Diode



Semiconductor Diodes

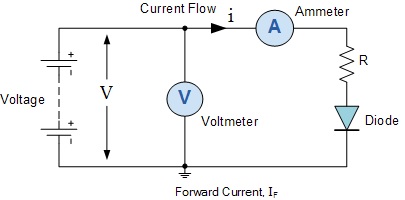

diode in a circuit
Current flows in same direction as diode symbol

A semiconductor diode is a two-terminal electronic component made from semiconductor material, typically silicon or germanium, doped with impurities to create a p-n junction. This junction has unique electrical properties, allowing current to flow more easily in one direction than in the opposite direction, which is the fundamental characteristic of diodes.

Forward Bias and Reverse Bias

  • Forward Bias: This occurs when the positive terminal of the power supply is connected to the anode (p-side) and the negative terminal to the cathode (n-side) of the diode. In forward bias, the diode’s resistance is very low, allowing significant current to flow through it. The I/V graph in this condition shows a sharp increase in current once the applied voltage exceeds a certain threshold known as the “forward voltage” ($V_f$). Below $V_f$, the diode conducts very little current, indicating its high resistance in this region.
  • Reverse Bias: This condition is established when the positive terminal of the power supply is connected to the cathode and the negative terminal to the anode. In reverse bias, the diode exhibits very high resistance, and the current flow is minimal. This is represented on the I/V graph as a flat line close to the horizontal axis, indicating negligible current flow up to a certain point. The graph demonstrates that the diode effectively blocks current in the reverse direction.

Breakdown Region

If the reverse bias voltage is increased beyond a certain critical point, the diode enters the breakdown region. At this point, the diode’s resistance decreases dramatically, allowing a substantial amount of current to flow through it, even in the reverse direction. This behavior is indicated on the I/V graph by a sharp upward turn in the curve in the reverse bias region. While this might seem like a failure mode, certain types of diodes (like Zener diodes) are designed to operate safely and reliably in this breakdown region for voltage regulation purposes.

Interpreting the I/V Graph Of A Semiconductor Diode

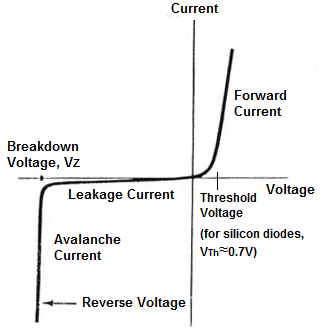

IV graph of semiconductor diode
IV graph of semiconductor diode

The I/V graph of a semiconductor diode can be divided into three main regions:

  1. Forward Bias Region: Characterized by a threshold voltage ($V_f$) beyond which current increases rapidly with voltage.
  2. Reverse Bias Region: Shows minimal current (leakage current) up to the breakdown voltage.
  3. Breakdown Region: Where the current increases sharply at a certain reverse bias voltage, indicating the diode’s breakdown.

Practical Implications

Understanding the I/V characteristics of a semiconductor diode is crucial for designing and troubleshooting electronic circuits. It helps in selecting the appropriate diode for a given application, whether it’s for rectification, voltage regulation, or signal processing. The behavior of the diode in different biasing conditions also aids in predicting the circuit’s response to various voltage inputs, ensuring reliable and efficient operation.

In summary, the I/V graph of a semiconductor diode offers valuable insights into its operational characteristics and is a fundamental aspect of electronic engineering and physics studies. By comprehensively understanding this graph, one can effectively utilize diodes in a wide range of electronic applications.


Worked Examples

Example 1: Diode Selection for Power Supply

You’re designing a power supply circuit that requires a diode for rectification. The power supply operates at 12V, and you expect a maximum current of 1A to flow through the diode in forward bias. Considering the I/V characteristics of diodes, how would you select an appropriate diode for this application? Explain your reasoning based on the diode’s forward voltage ($V_f$) and current capacity.

Click here to show/hide answer

To select an appropriate diode, you need to consider both the forward voltage ($V_f$) and the maximum current it can handle in forward bias without overheating or breaking down. For a 12V power supply with a maximum current of 1A, you should look for a diode with a $V_f$ lower than the operating voltage to ensure efficient conduction. A typical silicon diode with a $V_f$ of approximately 0.7V would be suitable, as it allows for easy conduction at 12V. Additionally, the diode must be rated for at least 1A of current, but choosing a diode with a higher current rating (e.g., 2A) would provide a safety margin to prevent the diode from overheating or failing under load. Thus, a silicon diode with a minimum rating of 2A and a $V_f$ of around 0.7V would be an optimal choice for this power supply circuit.

Example 2: Analyzing a Reverse Biased Diode in a Circuit

Imagine a circuit where a diode is reverse biased with a 15V power supply. The diode has a breakdown voltage of 20V. Describe what happens to the diode’s current flow as the voltage is gradually increased from 0V to 25V. Include in your explanation how the I/V graph of the diode aids in understanding its behavior in this scenario.

Click here to show/hide answer

As the voltage is gradually increased from 0V towards 15V, the diode remains in reverse bias, and according to its I/V characteristics, it will conduct minimal leakage current due to its high resistance in this direction. This behavior continues as the voltage approaches the diode’s breakdown voltage of 20V, with the I/V graph showing a very flat line near the horizontal axis, indicating negligible current flow.

Upon reaching the breakdown voltage of 20V, the diode enters the breakdown region. The I/V graph would show a sharp turn upwards, indicating a significant increase in current despite the increase in reverse voltage. This is because the diode’s internal structure begins to conduct in reverse, a condition designed to be avoided in regular diodes (but exploited in Zener diodes for voltage regulation). If the voltage is further increased beyond 20V, up to 25V, the current through the diode will increase rapidly, as depicted by the steep portion of the curve on the I/V graph in the breakdown region. This scenario emphasizes the importance of not exceeding a diode’s breakdown voltage in applications where reverse breakdown is not desired.

Example 3: Forward Bias Behavior Exploration

A particular LED (Light Emitting Diode) has a forward voltage ($V_f$) of 2.2V. In an experiment, you’re asked to plot a qualitative I/V graph for this LED from 0V to 5V. Describe the expected shape of the graph and explain the LED’s behavior as the applied voltage is increased within this range.

Click here to show/hide answer

In plotting a qualitative I/V graph for the LED, the graph starts with almost no current flow at voltages below the LED’s forward voltage ($V_f$) of 2.2V. This region of the graph will be nearly flat and close to the horizontal axis, indicating the LED’s high resistance and negligible current flow when not enough voltage is applied to overcome the $V_f$.

As the applied voltage reaches and surpasses 2.2V, the LED begins to conduct, and its resistance decreases significantly. This transition marks the point where the I/V graph starts to curve upward sharply, indicating a rapid increase in current flow through the LED as it starts emitting light. The steepness of the curve beyond 2.2V reflects the LED’s increasing current with increasing voltage in the forward bias condition.

Between 2.2V and 5V, the graph continues to rise, showing that the LED conducts more current as the voltage increases, following the diode’s exponential I/V relationship. However, the rate of current increase may start to level off slightly as the applied voltage gets much higher, due to the internal resistance of the LED and the power supply limits. This experiment illustrates the importance of operating LEDs within their specified forward voltage and current ratings to prevent overheating or damage, and the I/V graph provides a visual representation of how the LED’s current response changes with applied voltage.
