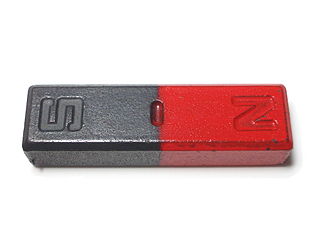

Bar magnet

Magnetism is one of the most intriguing and fundamental properties of matter, intricately linked to the phenomenon of electricity. At the core of magnetism is the movement of electric charges, which creates magnetic fields. This interconnection between electricity and magnetism is a cornerstone of electromagnetism, a fundamental force that governs many aspects of the physical world. Among the materials that exhibit strong magnetic properties are iron, steel, cobalt, and nickel. These materials are particularly adept at forming magnets due to their unique atomic structures, which allow for the alignment of magnetic moments.

Understanding Atoms and Magnetism

  1. An atom is composed of a positively charged nucleus encased by a cloud of negatively charged electrons. While it is commonly described that electrons orbit the nucleus in a manner similar to planets orbiting a star, this analogy simplifies the complex quantum mechanical nature of electron behavior. Electrons exist in probabilistic clouds rather than fixed orbits, and their “spin”—a quantum property that contributes to magnetism—along with their motion around the nucleus, generates magnetic fields. These fields can be thought of as minuscule atomic magnets.
  2. The magnetic characteristics are inherent to all substances at the atomic level. However, not all materials display magnetic properties in their bulk form. This discrepancy arises from the electron arrangements within atoms; in many materials, the directions of individual magnetic moments are oriented randomly, leading to the cancellation of their magnetic effects. This phenomenon explains why certain substances do not exhibit magnetism under normal conditions.
  3. The process of aligning these atomic magnets, however, can induce a strong collective magnetic effect, transforming the substance into a magnet. This alignment can be achieved through various means, including exposure to an external magnetic field, which reorients the atomic magnets in a uniform direction, thereby magnetizing the material. Once aligned, the combined effect of these tiny magnets creates a significant macroscopic magnetic field, and the material becomes a magnet.
  4. Lodestone (magnetite) is a natural material that acts as a magnet. Lodestone is unique for its strong and observable magnetic properties, which have been known since ancient times. In addition to natural magnets, materials like iron, steel, and other ferromagnetic substances can be artificially magnetized, making them invaluable for various applications in technology, industry, and daily life.


The exploration of magnetism reveals a fascinating aspect of the natural world, deeply rooted in the quantum mechanical behavior of electrons. By understanding the atomic foundation of magnetism, we gain insights into the vast applications and phenomena where magnetism plays a crucial role, from the compasses used by ancient navigators to the advanced technologies powering modern electronics and medical devices.

Worked Examples

Example 1: The Role of Electron Spin in Magnetism

Explain how the spin of an electron contributes to the magnetic properties of a material. Discuss why some materials exhibit strong magnetic properties while others do not, despite the atomic-level presence of magnetic fields generated by electron spin.

Click here to show/hide answer

The spin of an electron is a fundamental quantum property that, along with its motion around the nucleus, generates a magnetic field, essentially turning the atom into a tiny magnet. This is because the spin creates a magnetic moment, a vector quantity that represents the magnitude and direction of the atom’s magnetic field. In materials like iron, steel, cobalt, and nickel, the atomic structures allow for the magnetic moments of electrons to align in a uniform direction when subjected to an external magnetic field or certain conditions, leading to the manifestation of strong magnetic properties. In contrast, in many other materials, the directions of individual magnetic moments are oriented randomly. This randomness causes the magnetic fields of adjacent atoms to cancel each other out, resulting in the material not exhibiting magnetism in its bulk form.

Example 2: Magnetization Process

Describe the process of magnetizing a substance. Why does exposing a material like iron to an external magnetic field make it a magnet, and what happens to the atomic magnets within the material during this process?

Click here to show/hide answer

Magnetizing a substance involves aligning its atomic magnets (the magnetic moments of electrons) in a uniform direction. When a material such as iron is exposed to an external magnetic field, the magnetic moments of its electrons begin to align with the direction of the applied field. This alignment process is due to the energy minimization principle, where the system tends to adopt a configuration with the lowest possible energy state. The uniform alignment of magnetic moments results in a net magnetic field, transforming the previously non-magnetic or weakly magnetic material into a magnet. This process is reversible, and the material can lose its magnetization if the external magnetic field is removed and thermal agitation or other factors randomize the orientation of the atomic magnets.

Example 3: Natural vs. Artificial Magnets

Compare and contrast the magnetic properties of lodestone (magnetite) with artificially magnetized materials like iron or steel. What makes lodestone act as a natural magnet, and how does this compare to the way artificial magnets are created?

Click here to show/hide answer

Lodestone, or magnetite, is a natural magnet, exhibiting strong magnetic properties without the need for external magnetization. This is due to the mineral’s inherent structure and the natural alignment of its atomic magnets, likely caused by the Earth’s magnetic field during its formation or by other natural processes. In contrast, artificial magnets, such as iron or steel, require external intervention (exposure to a magnetic field, for example) to align their atomic magnets and achieve magnetic properties. While both lodestone and artificially magnetized materials have aligned magnetic moments that give them magnetic properties, the key difference lies in how this alignment is achieved: naturally and inherently in the case of lodestone, and through human intervention in the case of artificial magnets.

Example 4: Implications of Electron Arrangement on Material Magnetism

Considering the quantum mechanical behavior of electrons, discuss why the arrangement of electrons within atoms significantly influences a material’s magnetic properties. How does this understanding impact the development of technologies that rely on magnetic materials?

Click here to show/hide answer

The arrangement of electrons within atoms dictates whether the magnetic moments of these electrons will align in a uniform direction or be oriented randomly. This alignment is crucial for a material’s magnetic properties because uniformly aligned magnetic moments result in a net magnetic field, making the material magnetically strong. In contrast, random orientations lead to the cancellation of magnetic effects, rendering the material non-magnetic. Understanding this quantum mechanical behavior is vital for developing technologies that rely on magnetic materials, as it allows scientists and engineers to manipulate the magnetic properties of materials at the atomic level. This knowledge enables the creation of more efficient magnets for use in various applications, including electronics, industrial machinery, and medical devices, by choosing appropriate materials and processes to achieve the desired magnetic properties.
