Circuit Breaker As Applications Of Electromagnetics

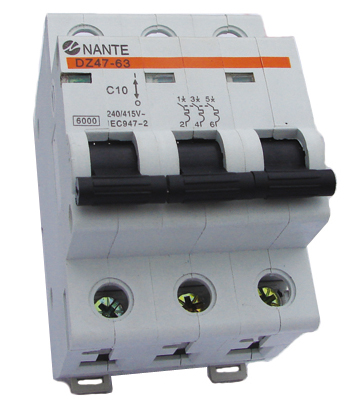

DZ47 63 3P Miniature Circuit Breaker

Circuit breakers are critical components in electrical circuits, serving as a safety mechanism to prevent damage from overcurrents. They are a practical application of electromagnetics, a branch of physics that deals with the study of electromagnetic forces. Here’s an expanded and improved explanation of circuit breakers and their operation:

Basic Concept Of Circuit Breaker

A circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by excess current, typically resulting from an overload or short circuit. Its basic function is to interrupt current flow after a fault is detected.

Electromagnetic Operation

The operation of a circuit breaker involves electromagnetism, which is the interaction of electric currents with magnetic fields. Inside a circuit breaker, there’s an electromagnet—a type of magnet where the magnetic field is produced by an electric current. When the current flowing through the circuit and the windings around the electromagnet stays within a safe limit, the circuit breaker remains closed, and electricity flows uninterrupted.

However, when the current exceeds a certain threshold—indicative of an overload or a potential short circuit—the strength of the magnetic field within the electromagnet increases significantly. This enhanced magnetic field forces a mechanical switch within the breaker to ‘trip,’ or open, thereby interrupting the flow of electricity in the circuit. This tripping mechanism is crucial for preventing potential damage to the circuit or connected devices, and more importantly, for avoiding fire hazards.

Difference from Make and Break Switches

Circuit breakers differ from simple “make and break” switches in several key aspects. While a “make and break” switch is used to manually connect or disconnect electrical circuits (turning devices on or off), a circuit breaker is designed to automatically ‘trip’ and disconnect the circuit in response to unsafe conditions without human intervention.

Manual Reset Function

After tripping, the circuit breaker remains in the open position, even if the current drops back to safe levels. This is a safety feature to ensure that the circuit isn’t re-energized automatically without addressing the cause of the overcurrent. To restore power, the circuit breaker must be manually reset. This manual reset involves checking the circuit for the cause of the overload or short circuit, fixing the issue, and then physically resetting the breaker to its closed position, re-establishing the circuit connection.

Importance in Electrical Safety

Circuit breakers are indispensable in modern electrical systems, offering a reliable and efficient means to protect electrical circuits from damage due to overcurrent conditions. By utilizing the principles of electromagnetism, they provide a fast and automatic response to dangerous electrical conditions, significantly enhancing the safety of electrical installations.

In summary, the circuit breaker’s ability to automatically interrupt electrical flow during overcurrent situations, relying on electromagnetism, and requiring manual reset after tripping, makes it a vital component in safeguarding electrical systems and preventing potential hazards.


Worked Examples

Example 1: Understanding Overcurrent Protection

A residential circuit is protected by a circuit breaker rated at 20 Amperes. The circuit feeds a combination of lighting and appliances totaling a normal operating current of 18 Amperes. During a party, additional lighting and a powerful sound system are added, increasing the current to 25 Amperes. Explain what happens in the circuit breaker when the current exceeds its rated capacity and detail the steps to safely restore power after the breaker trips.

Click here to show/hide answer

When the current in the circuit increases to 25 Amperes, exceeding the 20 Amperes for which the circuit breaker is rated, the increased current will enhance the magnetic field in the electromagnet within the circuit breaker. Once this magnetic field exceeds a certain threshold (corresponding to the 20 Ampere rating), it triggers the mechanical switch to trip, opening the circuit and stopping the flow of electricity to prevent damage or fire.

To safely restore power:

  1. Turn off or unplug the additional lighting and sound system to reduce the load on the circuit.
  2. Check the circuit for any signs of damage or overheating.
  3. Once it’s safe, reset the circuit breaker by switching it to the OFF position and then back to the ON position.
  4. Gradually reconnect devices to ensure the current does not exceed the circuit breaker’s rating again.

Example 2: Calculating Magnetic Field Strength

Assume a circuit breaker uses an electromagnet with a simple coil of wire. The wire has 200 turns, and the circuit normally operates at 10 Amperes. If the magnetic field strength $B$ generated by the coil is directly proportional to the current flowing through it, calculate the ratio of the magnetic field strength when the circuit is operating normally to the magnetic field strength just before the breaker trips at 15 Amperes.

Click here to show/hide answer

Since the magnetic field strength $B$ is directly proportional to the current $I$, we can use the ratio of the currents to find the ratio of the magnetic field strengths. If B₁ is the magnetic field strength at 10 Amperes and B₂ is the strength at 15 Amperes, then:

$$\frac{B_2}{B_1} = \frac{I_2}{I_1}$$

Given $I_1 = 10$ Amperes and $I_2 = 15$ Amperes,

$$\frac{B_2}{B_1} = \frac{15}{10} = 1.5 $$

Therefore, just before the breaker trips at 15 Amperes, the magnetic field strength is 1.5 times the strength when the circuit operates normally at 10 Amperes.

Example 3: Diagnosing a Tripping Circuit Breaker

A circuit breaker in an office consistently trips despite no apparent increase in the number of devices or load on the circuit. List three potential reasons for this behavior and suggest how each issue could be addressed.

Click here to show/hide answer

  1. Faulty Circuit Breaker: Over time, circuit breakers can wear out or become damaged, causing them to trip at lower currents than they’re rated for. Solution: Replace the circuit breaker with a new one of the correct rating.
  2. Ground Fault: A ground fault occurs when there is an unintended path to ground, often through damaged insulation or wiring. This can cause the breaker to trip as it detects a leakage current. Solution: Inspect the wiring for damage, repair any faults, and consider installing a Ground Fault Circuit Interrupter (GFCI) for enhanced protection.
  3. Overloaded Circuit: Even if no new devices were added, malfunctioning equipment or devices drawing more current than usual could overload the circuit. Solution: Identify and repair or replace faulty devices. Use an ammeter to check the current draw of connected devices to ensure the total does not exceed the breaker’s rating.
