The dangers associated with the use of electricity cannot be overstated, with electric shock and electric fire standing out as the most hazardous consequences. These risks often arise from damaged insulation, the overheating of cables, or exposure to damp conditions, each posing significant threats to safety and property.

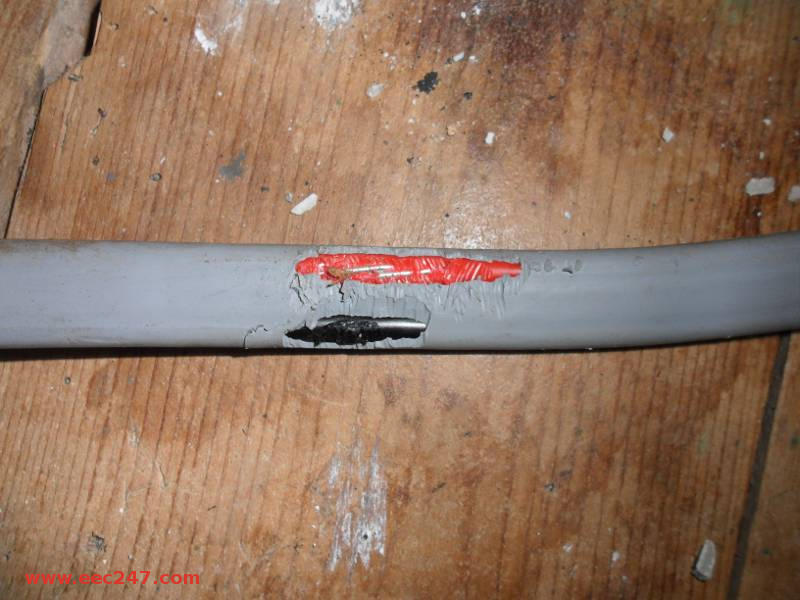

Damaged Insulation
Insulation, typically made from rubber, plays a crucial role in safeguarding the current-carrying conductors of electrical appliances. Over time, the flexibility of rubber insulation makes it susceptible to wear and tear, particularly from constant bending and twisting, as seen in everyday items like hair dryers and irons. This deterioration can lead to the insulation breaking apart, exposing the live wires underneath.
The exposure of these wires not only poses a risk of electric shock—which can cause severe injuries or fatalities—but also increases the likelihood of short circuits. Short circuits can cause the wires to overheat, presenting a significant fire hazard. This risk is exacerbated when the exposed wires come into contact with each other or with a conductive surface, completing an unintended circuit path that can lead to overheating and potentially start a fire.
Overheating of Cables
The risk of overheating is particularly acute in cables with thin wire conductors. When these conductors are forced to carry currents larger than they are designed for, they can quickly heat up to dangerously high temperatures. Such conditions often result from short-circuits or the overloading of cables, which can lead to the melting of the insulation material surrounding the wires and eventually cause fires. The consequences of such incidents can range from damage to the electrical system to severe property damage and even loss of life.
Damp Conditions
Damp or wet conditions significantly reduce the body’s effective resistance from around 100 kΩ in dry conditions to as low as 100 Ω. This drastic drop in resistance increases the risk of electric shock when using electrical appliances in environments where moisture is present, such as bathrooms or kitchens, or when the user’s skin is wet, e.g., from sweating or bathing. In such conditions, a person becomes a far more conductive pathway for electrical current, which can lead to severe injury or death if an electric shock occurs.
To mitigate these risks, it is vital to maintain electrical appliances and wiring in good condition, avoid overloading circuits, and exercise caution when using electricity in damp environments. Implementing safety measures, such as the use of Ground Fault Circuit Interrupters (GFCIs) and regular inspection of electrical systems, can significantly reduce the likelihood of electric shocks and fires, ensuring a safer environment for all.
Worked Examples
Example 1: Practical Application of Understanding Damaged Insulation
Emily notices that the rubber insulation on her hair dryer’s cord has started to fray and expose some of the wires. She recalls reading about the dangers of damaged insulation but decides to use it just one more time before replacing it. Given the risks associated with exposed wires, what are the potential hazards Emily is facing, and what should she do instead?
Click here to show/hide answer
Emily is risking electric shock and creating a fire hazard by using the hair dryer with damaged insulation. The exposed wires could easily cause a short circuit or come into contact with a conductive surface, leading to overheating and possibly a fire. The correct action would be to immediately stop using the hair dryer and replace it or have it repaired by a professional to ensure that all insulation is intact and safe for use.
Example 2: Understanding Overheating of Cables
A community center decides to organize an outdoor event and uses a single extension cord to power multiple high-wattage devices, including lights, speakers, and a food warmer. Halfway through the event, they notice the extension cord is extremely hot to the touch. What is likely happening inside the extension cord, and what are the immediate steps they should take to prevent any dangers?
Click here to show/hide answer
The extension cord is likely overheating due to overloading; it’s carrying more current than it’s rated for because of the high-wattage devices plugged into it. This can lead to the insulation melting and possibly catching fire. Immediately, they should unplug some of the devices to reduce the load on the extension cord and allow it to cool down. In the future, they should use multiple cords and ensure they are rated for the total wattage of the devices they intend to connect.
Example 3: Damp Conditions and Electrical Safety
During a pool party, Marco wants to add more lights around the pool area. He considers running an extension cord from the house to the pool area, which is slightly wet from the splashing water. Based on the information about damp conditions affecting electrical safety, why is this a bad idea, and what alternative solution could Marco consider?
Click here to show/hide answer
Running an extension cord to a wet area greatly increases the risk of electric shock because water significantly reduces the body’s resistance, making it easier for electrical current to pass through a person’s body. Instead, Marco should consider using battery-operated lights or ensuring that any electrical lighting near the pool is installed with proper grounding and is specifically designed for outdoor and damp conditions, such as lights with a high IP (Ingress Protection) rating for water resistance.
Example 4: Scenario Analysis on Damaged Insulation
Lisa’s cat has chewed through the insulation of her lamp’s power cord, exposing some of the wires. Lisa considers covering the exposed section with electrical tape as a temporary fix. Is this a safe solution, and what are the long-term measures she should consider to avoid electrical hazards?
Click here to show/hide answer
While wrapping the exposed wires with electrical tape might seem like a temporary fix, it’s not a safe or reliable long-term solution. The tape might not fully insulate the wires, still posing a risk of electric shock or fire. The best course of action is to replace the power cord entirely or have the lamp professionally repaired. To prevent future incidents, she should consider using cord protectors or bitter-tasting cord covers to deter her cat from chewing on cables.
Example 5: Overloading and Cable Management
Kevin uses a power strip to connect his computer, monitor, printer, desk lamp, and space heater in his home office. He notices that the power strip often feels warm. Concerned about the risks of overheating cables, what steps should Kevin take to ensure his setup is safe?
Click here to show/hide answer
Kevin’s power strip is likely warm due to the high cumulative wattage of the devices connected, especially the space heater, which is a high-wattage device. To ensure safety, he should:
- Check the power strip’s wattage rating and compare it to the total wattage of all connected devices to ensure it’s not being overloaded.
- Consider connecting the space heater directly to a wall outlet instead, as it consumes a lot of power.
- Use another power strip if necessary, to distribute the electrical load more evenly.
- Ensure the power strip is well-ventilated and not covered by anything that could trap heat.
By following these steps, Kevin can prevent the risks associated with overheating cables, including potential fires.
