Electricity In The Home
Key idea: G3 Physics and O-Level Physics practical electricity: live, neutral and earth wires in household mains, and why safety devices are placed in the live wire.
By the end, you can
- State the meanings and normal roles of live, neutral and earth.
- Explain the earth-fault protection chain and why isolation devices belong in live.
1. Definition
A. Live, neutral and earth
- Live wire (L): at high potential difference (about 230–240 V) relative to earth.
- Neutral wire (N): about 0 V relative to earth; returns current to the supply.
- Earth wire (E): safety wire connected to Earth; carries current mainly during a fault.
Do not touch any mains wiring. Faults can make metal parts live and dangerous.
O Level expects you to state the meaning of live, neutral and earth, and explain why switches/fuses/circuit breakers are fitted to the live wire.
2. Key Ideas
- Current normally flows from live → appliance → neutral.
- The earth wire provides a low-resistance path if the metal casing becomes live, producing a large current so the fuse/breaker disconnects the supply.
- Safety devices are connected in the live wire so the appliance is disconnected from the live supply when they open the circuit.
3. Detailed Explanations
A. How electricity enters the home

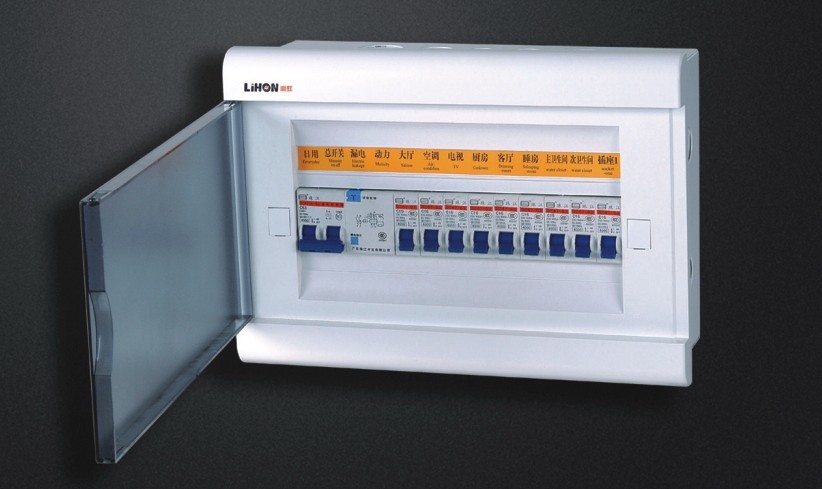

Electricity enters a home through a distribution system and is then supplied to different circuits.
B. Why the earth wire improves safety
If a fault makes the metal casing live (e.g. damaged insulation inside an appliance), the earth wire provides a low-resistance path to Earth. This causes a large current, so the fuse blows or the circuit breaker trips quickly, disconnecting the supply.
C. Why safety devices are on the live wire
Switches, fuses and circuit breakers are fitted to the live wire so that when they open the circuit, the appliance is disconnected from the live supply.
If they were fitted to the neutral wire, the appliance could still be connected to the live wire and remain dangerous.
4. Common Mistakes
- Saying “neutral is always safe” (it should be near 0 V, but faults can make it dangerous).
- Thinking the earth wire is the normal return path (neutral is the normal return path).
- Placing the switch/fuse/circuit breaker on the neutral wire in explanations/diagrams.
5. Exam Tips
- Define L/N/E using potential difference and purpose.
- For earth-wire questions: “low resistance path → large current → fuse blows / breaker trips”.
- For safety-device placement: “fitted to the live wire so the appliance is disconnected from the live supply”.
6. Worked Examples
Example 1: Earth wire currentCore
Explain why the earth wire normally carries no current, but can carry a large current during a fault.
Show Answer
Normally, current flows from live to neutral through the appliance, so the earth wire is not part of the circuit.
During a fault, the casing may become live. The earth wire provides a low-resistance path to Earth, producing a large current that makes the fuse blow or the circuit breaker trip.
Example 2: Live vs neutral rolesCore
State the roles of the live wire and the neutral wire in a household circuit.
Show Answer
Live wire supplies electrical energy (high potential difference). Neutral wire completes the circuit by returning current to the supply (near 0 V relative to earth).
Example 3: Wire colours (modern standard)Core
In a standard 3-core mains cable, state the colour of the live, neutral and earth wires.
Show Answer
- Live: brown
- Neutral: blue
- Earth: green/yellow
Example 4: Fuse placement reasoningCore
In a mains plug, the fuse is placed in the live wire. Explain why.
Show Answer
When a fuse blows, it opens the circuit. Putting it in the live wire disconnects the appliance from the live supply so parts of the appliance are not left at live potential difference.
Example 5: Fault to casing (what happens next?)Core
A metal-cased appliance is correctly earthed. A fault causes the live wire to touch the casing. Explain what happens and why this reduces the risk of shock.
Show Answer
The casing becomes connected to live, but the earth wire provides a low-resistance path so a large fault current flows. This makes the fuse blow or the circuit breaker trip quickly, disconnecting the supply. The earth wire carries current mainly during the fault, not during normal use.
7. Mind Stretchers
Mind stretcher 1: Switch on neutralExtension
A switch is placed in the neutral wire and is open (OFF). Explain why the appliance could still be dangerous to touch if there is a fault.
Show Answer
Even with the neutral wire open, the appliance can still be connected to the live wire. If a fault makes the casing live, it can be at high potential difference and give an electric shock.
Mind stretcher 2: Earth path and safetyExtension
If an appliance has a metal casing but no earth connection, why can that be dangerous during a fault?
Show Answer
Without an earth connection, there may be no low-resistance path for a large fault current. The casing can remain live, and touching it could cause a shock.
8. Practice and next step
- Rehearse each conductor as potential + normal role + fault role, rather than memorising colours alone.
- Use the Practical Electricity Structured Practice to write complete live-isolation explanations.
- Next, compare the two protection designs in Earthing & Double Insulation.
